1. Automatic High Speed Bolt Making Machine
Gurinder Double and Single Stroke Solid Die and Two Piece Cold Heading Machines are fully automatic for cold heading screws, bolts, rivets & similar products. These Heading Machines are easily operated by unskilled labour with little training. All Parts are made of high quality steel and costing.
Specification
| GEWH/ No | Length of blank | Wire Gauge of Dia of Bolt | Production Pcs/minute |
Motor H.P. & R.P.M. |
| 1. | 1/4″ – 1″ | 14/9 – 1/16″ 1/8″ | 100 – 125 | 1.5 x 960 |
| 2. | 3/8″ – 1 1/2″ | 12/9 – 1/8″ – 3/16″ | 70 – 100 | 2 x 960 |
| 3. | 1/2″ – 2″ | 3/16″ – 1/4″ | 60 – 80 | 5 x 960 |
| 4. | 3/4″ – 3″ | 1/4″ – 3/8″ | 50 – 60 | 7.5 x 960 |
| 5. | 1″ – 4″ | 5/16″ – 1/2″ | 40 – 45 | 15 x 960 |
| 6. | 1 1/2″ – 5″ | 3/8″ – 5/8″ | 30 – 35 | 25 x 960 |
| 7. | 2″ – 6″ | 1/2″ – 3/4″ | 25 – 30 | 40 x 750 |
2. AutoMatic Bolt Trimming & Shank Reducting Machine
Gurinder Double and Single Stroke Solid Die and Two Piece Cold Heading Machines are fully automatic for cold heading screws, bolts, rivets & similar products. These Heading Machines are easily operated by unskilled labour with little training. All Parts are made of high quality steel and costing.
Specification
| GEWH/ No | Length of blank | Wire Gauge of Dia of Bolt | Production Pcs/minute |
Motor H.P. & R.P.M. |
| 1. | 1/2″ – 1″ | 1/16″ – 1/8″ | 80-90 | 1 x 1440 |
| 2. | 1/2″ – 2″ | 3/16″ – 1/4″ | 60 – 80 | 3 x 1440 |
| 3. | 3/4″ – 3″ | 1/4″ – 3/8″ | 50 – 60 | 5 x 1440 |
| 4. | 1″ – 4″ | 5/16″ – 1/2″ | 40 – 45 | 7.5 x 1440 |
| 5. | 1 1/2″ – 5″ | 3/8″ – 5/8 | 30 – 35 | 15 x 1440 |
| 6. | 2″ – 6″ | 1/2″ – 3/4″ | 25 – 30 | 20 x 1440 |

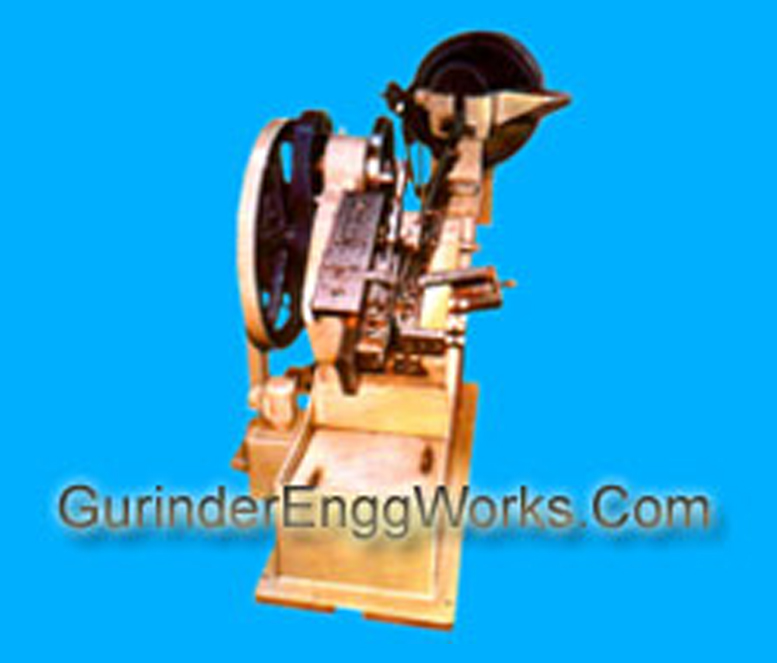

3. AutoMatic Cold Tread Rolling Machine
Automatic Cold Thread Rolling Machine are suitable for threading screws bolts, cycle and automatic parts and other similar components from mild steel, brass & aluminum etc. Two flat dies used in these machines are easily fitted & all adjustments are very simple. A water coolant pump keeps the dies cool.
Specification
| GEWH/ No | Length of blank | Wire Gauge of Dia of Bolt | Production Pcs/minute |
Motor H.P. & R.P.M. |
| 1. | 1/2″ – 1 1/2″ | 1/8″ – 3/16″ | 70 – 100 | 2 x 1440 |
| 2. | 1/2″ – 2″ | 3/16″ – 1/4″ | 60 – 80 | 3 x 1440 |
| 3. | 3/4″ – 3″ | 1/4″ – 3/8″ | 50 – 60 | 5 x 1440 |
| 4. | 1″ – 4″ | 5/16″ – 1/2″ | 40 – 45 | 7.5 x 1440 |
| 5. | 1 1/2″ – 5″ | 3/8″ – 5/8 | 30 – 35 | 15 x 1440 |
| 6. | 2″ – 6″ | 1/2″ – 3/4″ | 25 – 30 | 20 x 1440 |
